Industrial Stainless Steel Clad Plates (Single & Double-Sided)

What Configurations Are Available for Stainless Steel Clad Plates?

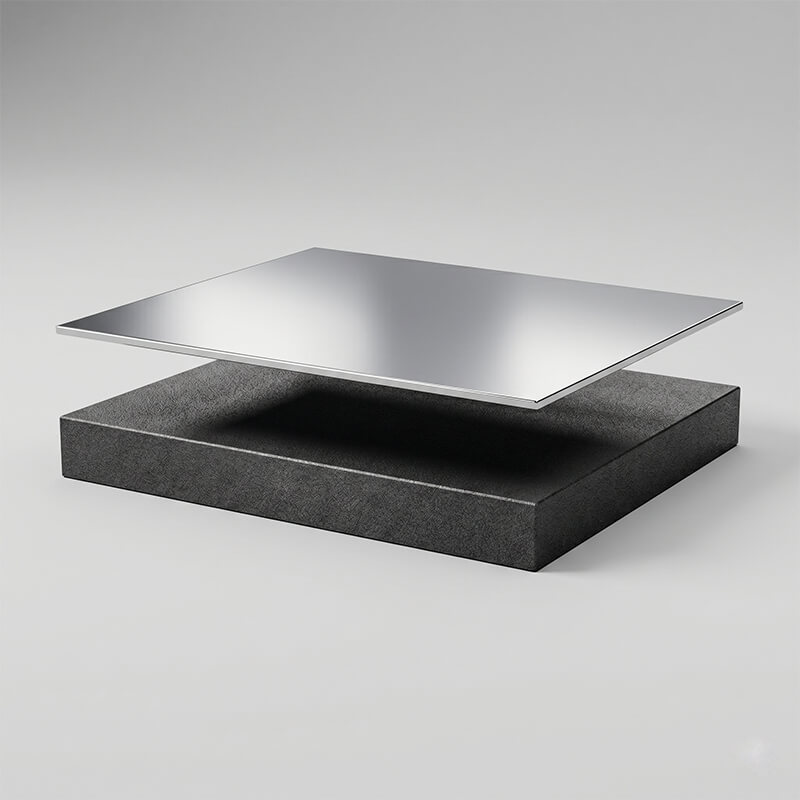

• HC-B01 Single-Side Clad Plate: Features a premium stainless steel cladding layer on a carbon steel base (Q235, Q355B). Engineered for standard industrial applications requiring one-sided corrosion resistance combined with structural strength.

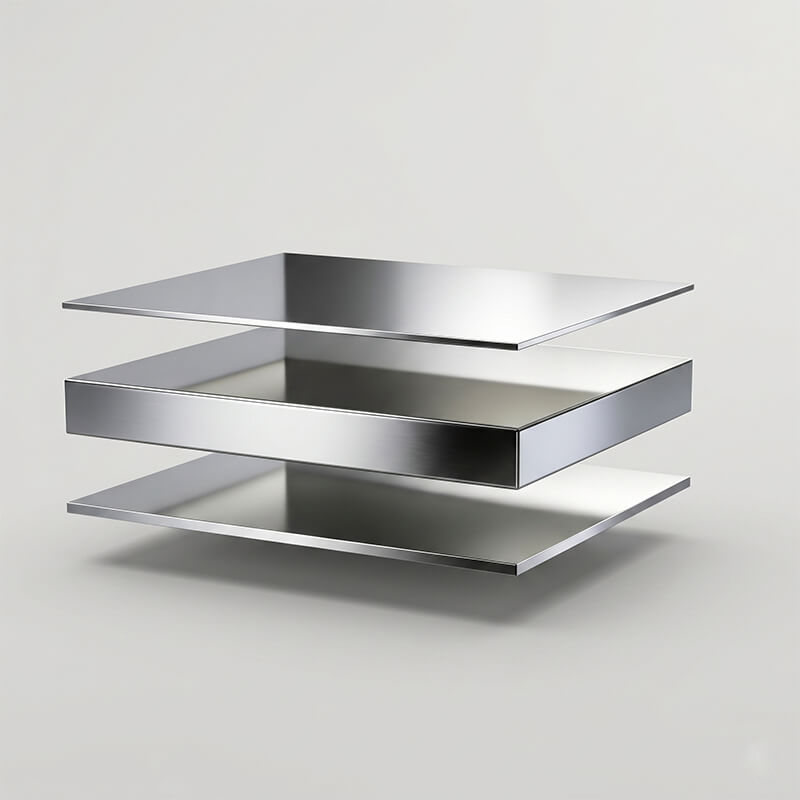

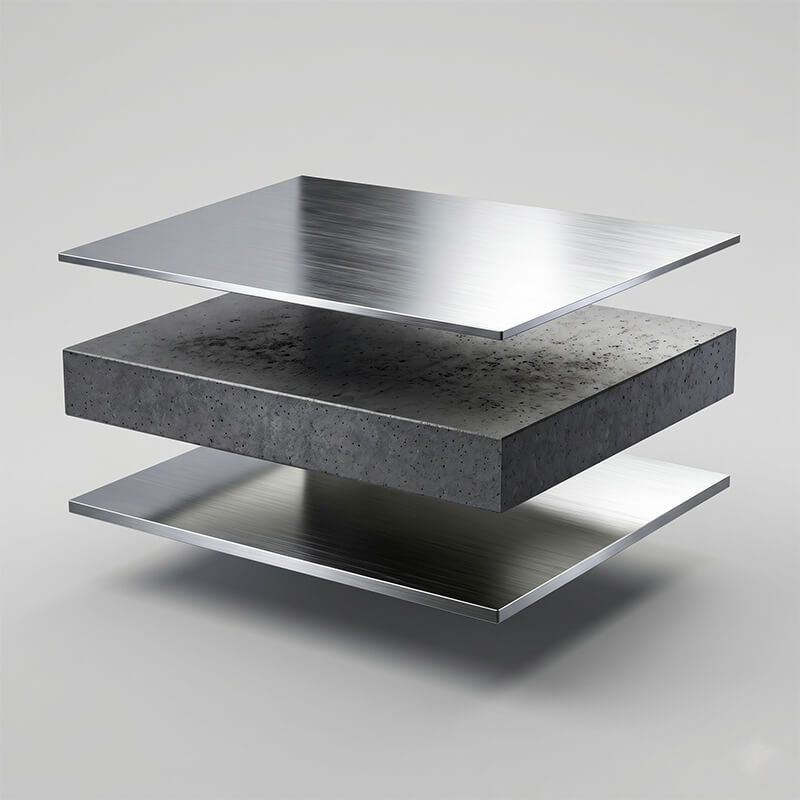

• HC-B02 Double-Side Clad Plate: Features top and bottom stainless steel cladding layers over a central carbon steel base (Q235, Q355B), providing comprehensive dual-sided environmental protection.

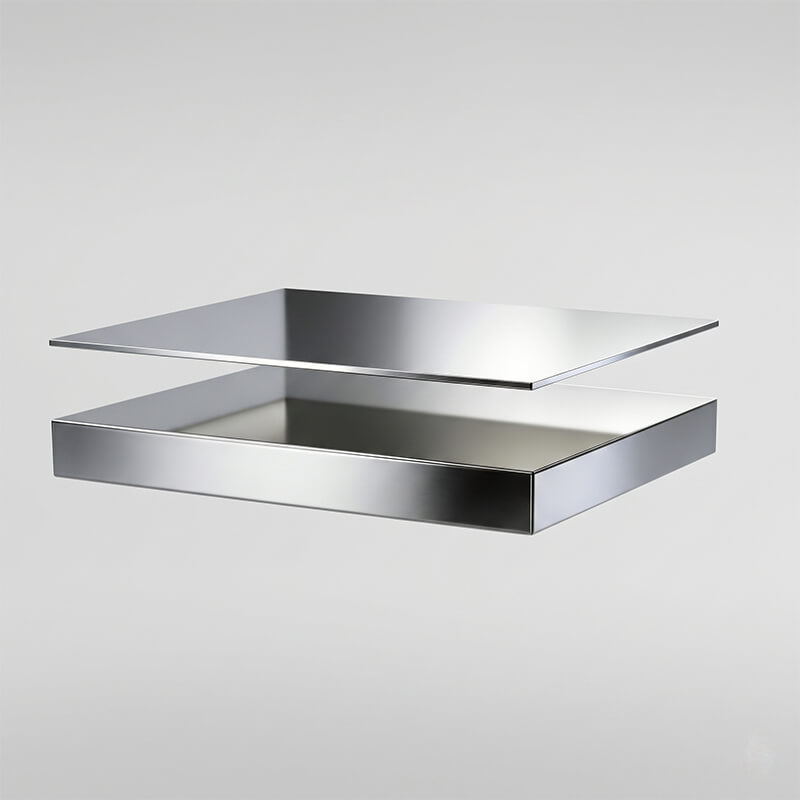

• HC-B03 Heavy-Duty Single-Side Clad Plate: Utilizes a robust Grade 201 stainless steel base layer bonded with premium stainless steel cladding (304, 316, 2205, 2507) for enhanced durability in demanding environments.

• HC-B04 Heavy-Duty Double-Side Clad Plate: A 3D layered composite featuring a Grade 201 stainless steel core sandwiched between top and bottom premium stainless steel cladding layers.

What Are the Standard Technical Specifications?

• Cladding Material Options: Stainless Steel Grades 304, 316, 2205, and 2507.

• Base Material Options: Carbon Steel (Q235, Q355B) or Grade 201 Stainless Steel.

• Cold-Rolled Dimensions: Thickness ranging from 0.88mm to 3mm; Standard width of 1240mm.

• Hot-Rolled Dimensions: Thickness ranging from 3mm to 16mm; Standard width of 1540mm.

Key Industrial Applications

• Chemical processing and petrochemical storage vessels.

• Marine engineering and structural shipbuilding components.

• Industrial fabrication requiring specific strength-to-weight ratios with critical surface corrosion resistance.
